Features:

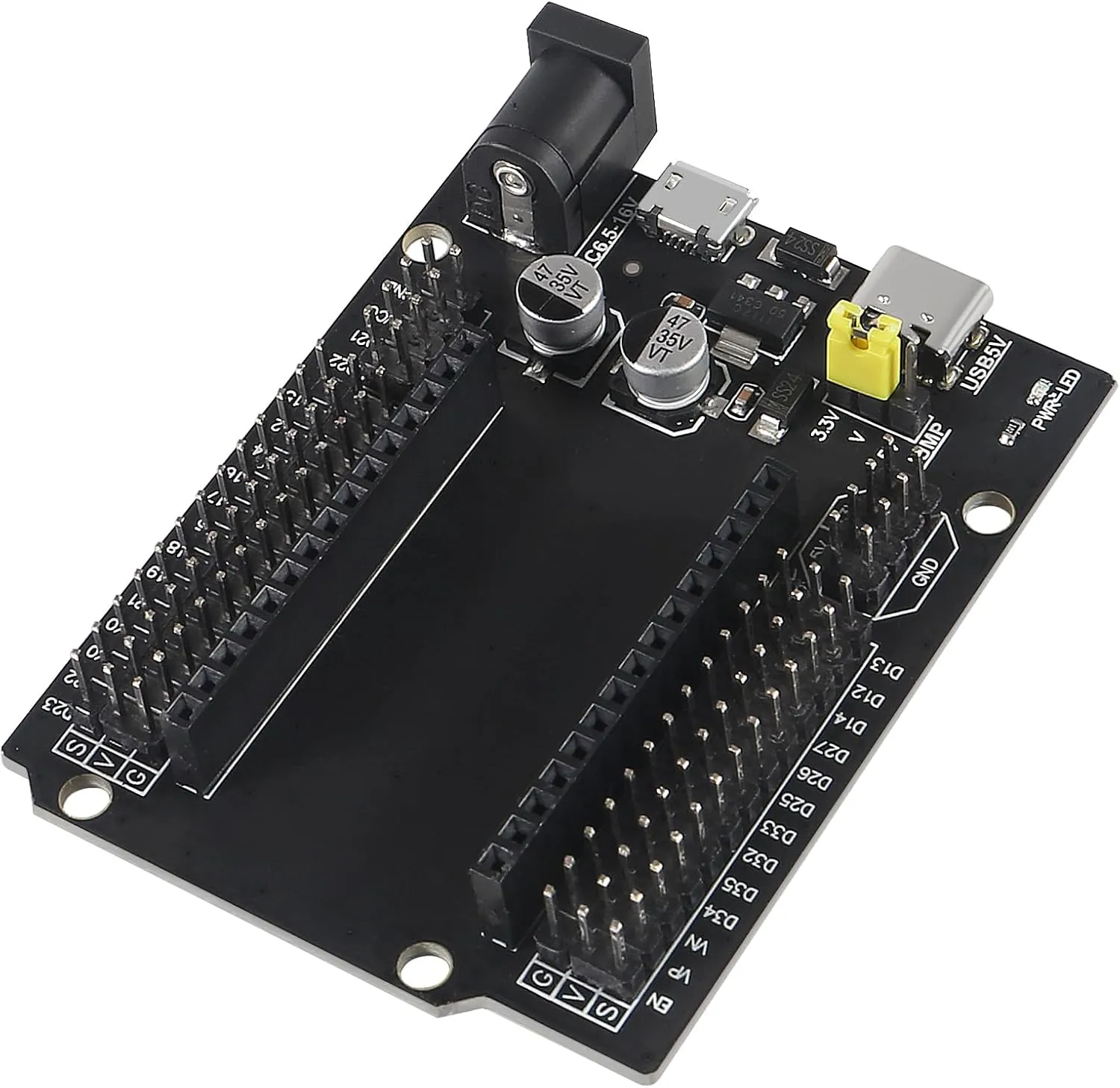

- Designed for ESP32 30-pin DEVKIT V1 development boards
- Provides stable and regulated power supply
- Supports multiple power input methods (USB and external DC)
- Onboard voltage regulation for safe operation
- Easy plug-and-play design for quick setup
- Compact and lightweight form factor
- Improves reliability for prototyping and embedded applications
- Reduces wiring complexity for power connections
Principle of Work:
The power board works by accepting an input voltage from either a USB connection or an external DC source and regulating it to a stable voltage level required by the ESP32 DEVKIT V1. The onboard voltage regulator ensures that the output remains consistent even if the input voltage fluctuates.
Once connected, the regulated voltage is supplied directly to the ESP32 board through its power pins. This ensures reliable operation and prevents issues such as brownouts or instability caused by insufficient or unstable power sources.
Applications:
- Power supply solution for ESP32 development projects
- IoT and wireless communication systems
- Embedded systems requiring stable voltage regulation
- Prototyping and testing environments
- Standalone ESP32-based devices
Technical Details:
- Compatible Board: ESP32 DEVKIT V1 (30-pin)
- Input Voltage: USB (5V) or external DC input
- Output Voltage: 5V / 3.3V (regulated)
- Voltage Regulation: Onboard regulator
- Form Factor: Compact expansion board
Comparisons:
Compared to powering the ESP32 directly through a USB cable, this power board offers more flexibility by supporting external power sources and providing regulated outputs. It is especially useful in standalone or embedded applications where USB power is not practical.
Unlike generic voltage regulator modules, this board is specifically designed for the ESP32 DEVKIT V1, ensuring compatibility and ease of use without additional wiring or configuration.
