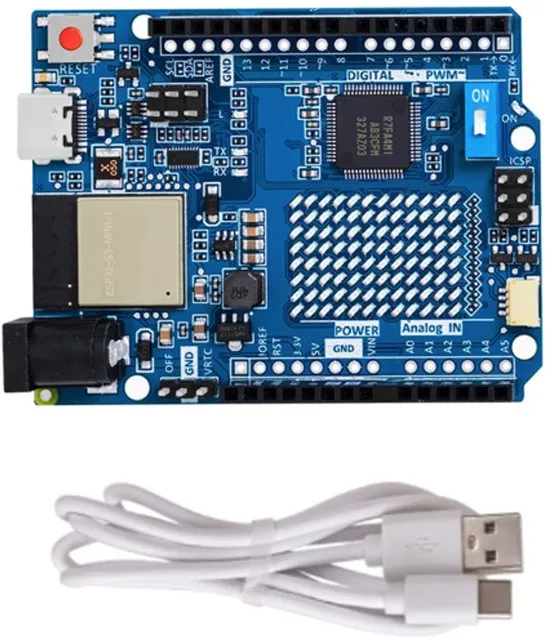

UNO R4 WiFi Development Board Compatible

UNO R4 WiFi Development Board Compatible

This UNO R4 WiFi compatible development board is designed to provide the same functionality as the official Arduino UNO R4 WiFi while offering additional practical improvements for developers and hobbyists. It integrates an ARM Cortex-M4 processor for high-speed processing together with an ESP32-S3-MINI wireless module for advanced WiFi and Bluetooth connectivity. The board includes a built-in 12x8 LED matrix composed of 96 red LEDs, allowing visual output and display applications without requiring external display modules. Additional GPIO headers simplify sensor and peripheral connections, making prototyping easier and more flexible. Unlike some official versions requiring soldering for certain configuration changes, this improved design incorporates a convenient dial switch for easier operation and communication mode selection.

Package Includes:

  • 1 x UNO R4 WiFi Development Board Compatible
  • 1 x USB to Type-C Cable
89.00 AED 89.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features:

  • Fully compatible with official UNO R4 WiFi features and functionality.
  • Powered by a high-performance ARM Cortex-M4 processor.
  • Integrated ESP32-S3-MINI module for WiFi and Bluetooth connectivity.
  • Built-in 12x8 LED matrix with 96 red LEDs.
  • Additional GPIO interface row for easier external connections and expansion.
  • USB-C programming and power interface.
  • Dial switch design for easier mode selection without soldering.
  • Cost-optimized hardware design using domestically produced DC chips.
  • Supports Arduino IDE and standard Arduino libraries.
  • Compact UNO form factor compatible with many shields and modules.



Principle of Work:

The board operates as a programmable embedded system capable of processing data, controlling peripherals, and communicating wirelessly.

  • Main Processor: The ARM Cortex-M4 microcontroller executes Arduino sketches and control logic.
  • Wireless Communication: The ESP32-S3-MINI module handles WiFi and Bluetooth connectivity.
  • LED Matrix: The onboard 12x8 matrix displays animations, text, and visual indicators.
  • USB Communication: USB-C provides programming, serial communication, and power input.
  • Expansion Interfaces: Additional headers simplify external module integration.



Pinout of the Board:



Arduino UNO R4 WiFi. Is this new board for you?

First Time Starting:

  • Connect the board to your computer using the included USB Type-C cable.
  • Install the latest Arduino IDE.
  • Open Arduino IDE and go to Tools → Board Manager.
  • Search for and install the Arduino UNO R4 board package if required.
  • Select the UNO R4 WiFi compatible board from the board menu.
  • Select the correct COM port.
  • Upload a basic example such as Blink or LED Matrix example to verify operation.



Applications:

  • IoT and wireless communication projects.
  • Smart home automation systems.
  • Robotics and motion control.
  • LED matrix display applications.
  • Educational and STEM electronics projects.
  • Sensor monitoring and data logging systems.



Technical Details:

  • Processor: ARM Cortex-M4
  • Storage: 256KB Flash / 32KB SRAM
  • Working Voltage: 5V
  • Input Voltage: 6~24V
  • Clock Frequency: 48MHz
  • Programming Port: USB-C
  • Programming Port Protocol: USB-C
  • WiFi/Bluetooth Module: ESP32-S3-MINI
  • LED Matrix: 12x8 (96 Red LEDs)
  • Additional Connections: Qwiic Connector, VRTC Pin, WIFI OFF Pin
  • Digital I/O Interfaces: 14
  • PWM Interfaces: 6
  • ADC Interfaces: 6
  • DAC Interfaces: 1 (12-bit)
  • SPI Interfaces: 1
  • I2C Interfaces: 1
  • CAN Interfaces: 1
