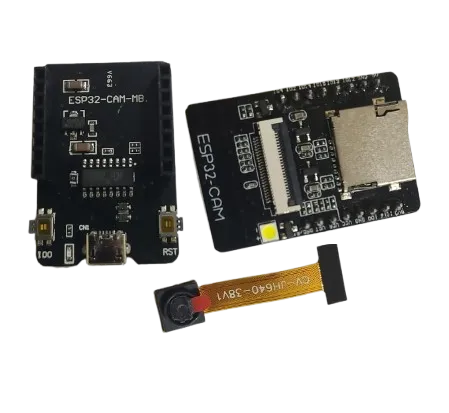

ESP32 CAM Development 8M PSRAM Board With OV2640 Module

ESP32 CAM Development 8M PSRAM Board With OV2640 Module

The ESP32-CAM Development Board is a compact and powerful WiFi + Bluetooth module integrated with an OV2640 camera sensor and 8MB PSRAM. It is designed for smart IoT applications, wireless image transmission, surveillance systems, and embedded vision projects. Powered by the ESP32-S chip, this board supports dual-core processing, built-in WiFi, and Bluetooth, making it ideal for real-time image capture, video streaming, and remote monitoring applications. The onboard camera and microSD card support provide flexible data storage and processing options.

Package Includes

  • 1 × ESP32-CAM Development Board.
  • 1 × OV2640 Camera Module.
    1 x Downloader Board.
esp32
89.00 AED 89.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • ESP32-CAM module with integrated OV2640 camera sensor.
  • 8MB PSRAM for enhanced image processing performance.
  • Built-in WiFi (802.11 b/g/n) and Bluetooth connectivity.
  • Supports JPEG image format output.
  • MicroSD card slot for local storage and logging.
  • Compact design suitable for embedded and IoT applications.
  • Low power consumption with multiple sleep modes.
  • Compatible with Arduino IDE and ESP-IDF development environment.
  • Supports OTA firmware updates.
  • Ideal for wireless camera and AI vision projects.

Specifications

Module Type ESP32-CAM Development Board
Main Chip ESP32-S
Camera Sensor OV2640
PSRAM 8MB
Wireless Connectivity WiFi 802.11 b/g/n + Bluetooth
Operating Voltage 5V DC
Interface UART, SPI, I2C, PWM, GPIO
Storage MicroSD Card Slot Support
Camera Resolution Up to 1600 × 1200 (UXGA)
Development Support Arduino IDE, ESP-IDF

Pinout:

ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera Module OV2640 For Arduino In Pakistan – SMART HALLROAD

ESP32-CAM, Camera Module Based On ESP32, OV2640 Camera and ESP32-CAM-MB adapter Included

Applications

  • Wireless surveillance systems
  • IoT smart camera projects
  • Face recognition and AI vision projects
  • Home automation systems
  • Remote monitoring solutions
  • Robotics vision systems
  • Motion detection cameras
  • Smart doorbells
  • Industrial monitoring
  • DIY embedded camera projects
