ESP32 CAM Development Dowenloader Board (ESP32 not Included)

ESP32 CAM Development Dowenloader Board (ESP32 not Included)

The ESP32-CAM USB Downloader Board is a convenient programming and debugging adapter designed specifically for the ESP32-CAM development board. It eliminates the need for external USB-to-Serial converters and manual wiring, allowing quick firmware uploads directly from a computer via a Micro USB connection. The board integrates a USB-to-UART converter and provides automatic power and serial communication for the ESP32-CAM module. Simply plug the ESP32-CAM into the downloader board, connect it to your computer using a Micro USB cable, and program it using the Arduino IDE or ESP-IDF. This accessory is ideal for developers, students, and makers working with ESP32-CAM projects.

Package Includes

  • 1 × ESP32-CAM USB Downloader Programming Board

Note: ESP32-CAM development board and Micro USB cable are not included.


esp32
65.00 AED 65.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Designed specifically for the ESP32-CAM development board.
  • Integrated USB-to-UART converter for easy programming.
  • Micro USB interface for direct connection to a computer.
  • Eliminates the need for external FTDI or USB-to-TTL adapters.
  • Plug-and-play design for quick firmware uploading.
  • Provides stable power to the ESP32-CAM during programming.
  • Compact and lightweight design.
  • Compatible with Arduino IDE and ESP-IDF.
  • Ideal for development, testing, and firmware updates.
  • ESP32-CAM module is not included.

Specifications

Product Type ESP32-CAM USB Downloader Board
Compatible Module ESP32-CAM Development Board
USB Interface Micro USB
USB to UART Integrated USB-to-Serial Converter
Programming Support Arduino IDE, ESP-IDF
Power Supply 5V via USB
Connection Direct Plug-in Socket for ESP32-CAM
Operating System Support Windows, Linux and macOS

Applications

  • Programming ESP32-CAM modules
  • Firmware uploading and debugging
  • ESP32-CAM development
  • Educational and laboratory use
  • IoT project development
  • Prototype testing
  • Embedded systems programming
  • Wireless camera project development
  • Rapid firmware updates
  • Electronics workshops and makerspaces

 Pinout:

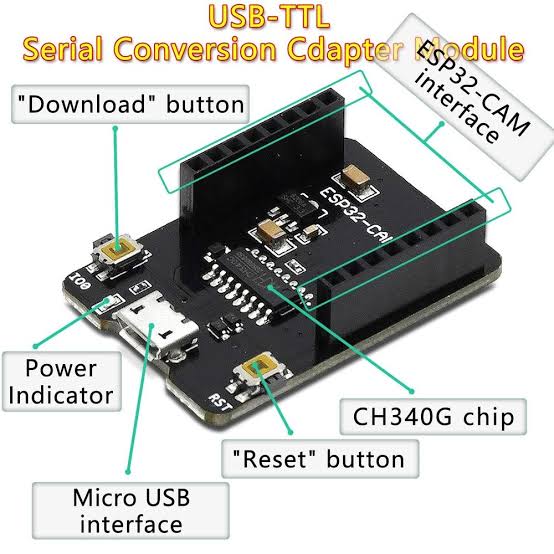

ESP32-CAM-MB Micro USB To Serial Converter Loader - iFuture Technology

ESP32-CAM Pinout

Resources
