Features:
- DC-DC automatic buck-boost converter
- Manufactured in China
- Input voltage range: 5V-30V DC
- Adjustable output voltage: 0.6V-30V DC
- Maximum output current: 4A
- 35W output power (up to 50W with additional cooling)
- Constant Voltage (CV) and Constant Current (CC) modes

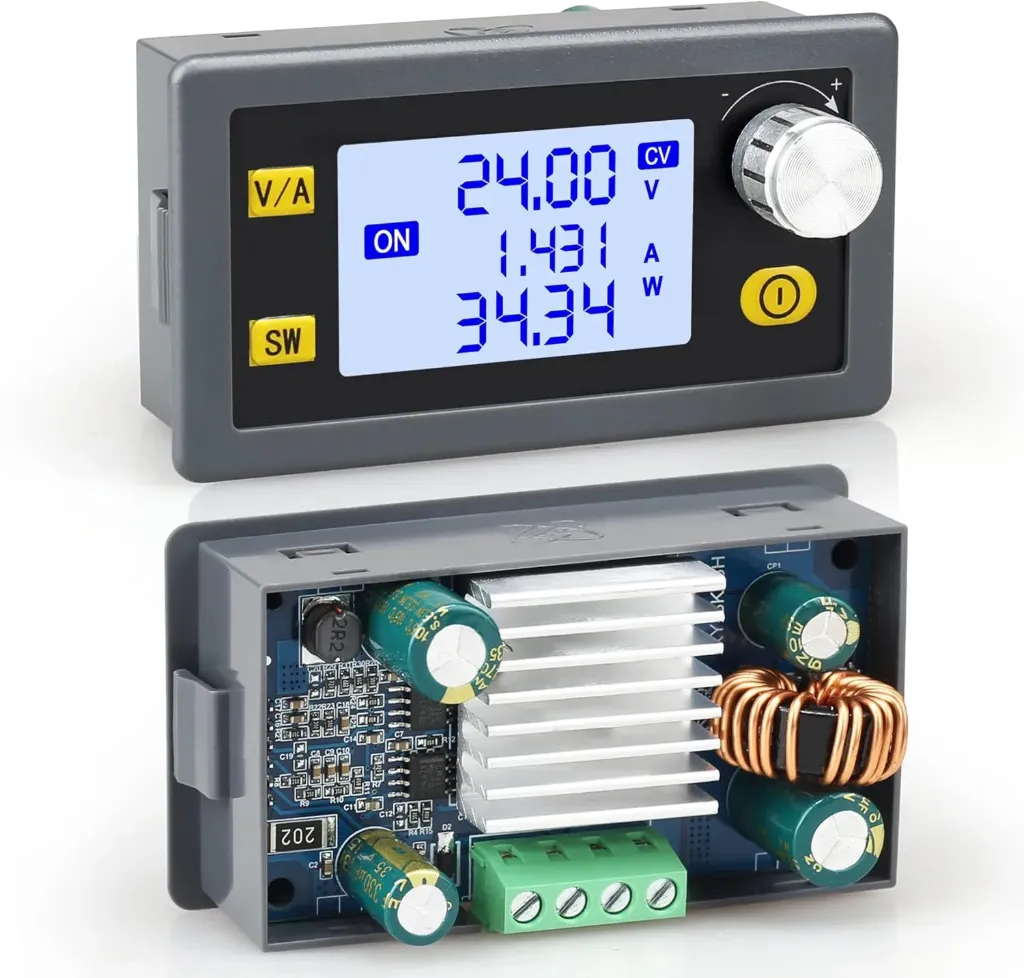

- Large LCD display with real-time voltage, current, and power monitoring
- Rotary encoder for fast parameter adjustment
- Programmable output settings and power-on state
- Soft-start function
- High conversion efficiency up to approximately 88%
- Built-in input reverse polarity protection
- Output anti-backflow protection
- Over-voltage, over-current, over-power, and over-temperature protection
- Suitable for battery charging, solar systems, LED drivers, and laboratory power supplies
Principle of Work:
The module uses a high-efficiency switching regulator that automatically operates in buck or boost mode depending on the relationship between the input and output voltages. An onboard microcontroller continuously monitors the output voltage and current, adjusting the switching circuit to maintain the programmed constant voltage or constant current. This ensures stable output even when the input voltage fluctuates or the connected load changes.

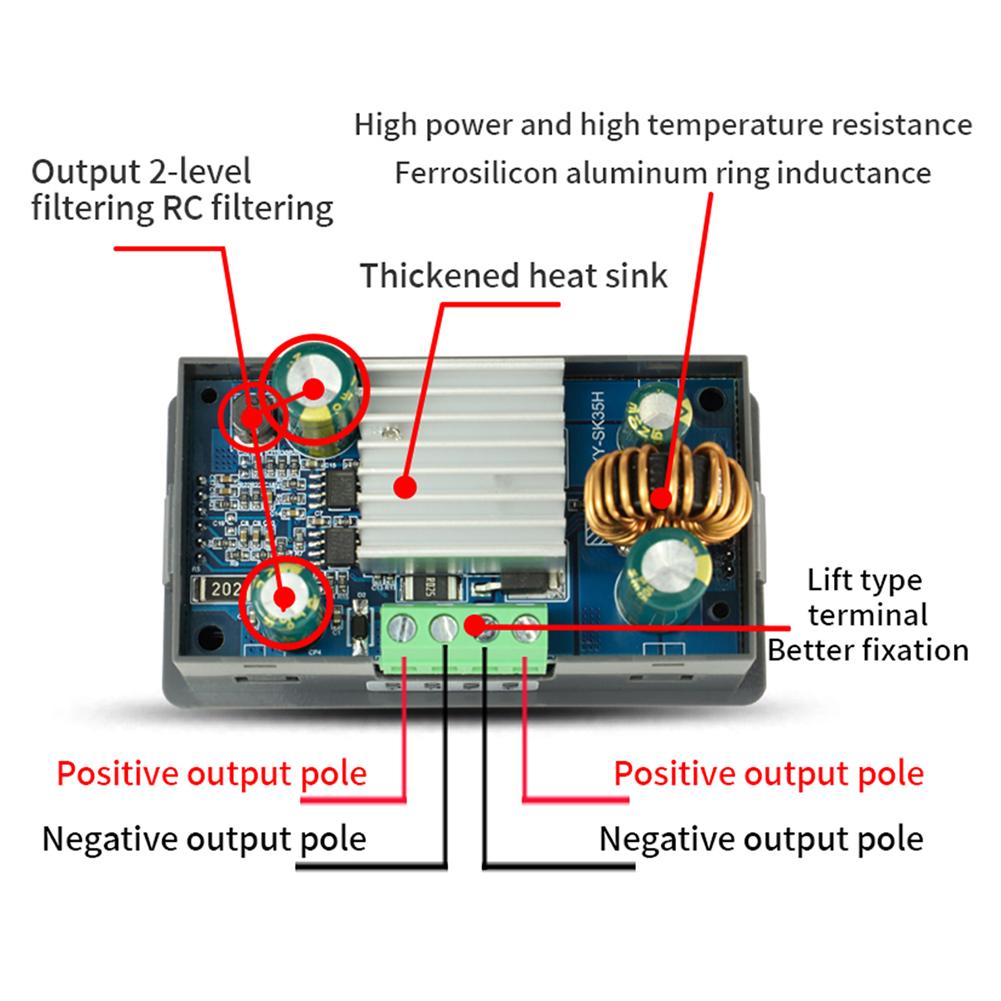

Terminal Connections:
- IN+: Positive DC input (5V-30V).
- IN-: Negative DC input.
- OUT+: Positive regulated output.
- OUT-: Negative regulated output.
Applications:
- Bench and laboratory DC power supplies
- Battery charging systems
- Solar power regulation
- LED constant current drivers
- Automotive electronics
- Embedded system development
- Arduino, ESP32, and Raspberry Pi projects
- Electronic equipment testing and maintenance
Operation:
- Connect a DC input source (5V-30V) to the input terminals.
- Connect the load to the output terminals.
- Use the rotary encoder and front-panel buttons to set the desired output voltage and current.
- Enable the output using the ON/OFF button.
- Monitor voltage, current, power, and operating mode on the LCD display.
Technical Details:
- Model: XY-SK35H
- Country of Manufacture: China
- Converter Type: DC-DC Buck-Boost
- Input Voltage: 5V-30V DC
- Output Voltage: 0.6V-30V DC
- Output Current: 0-4A
- Rated Output Power: 35W (50W with additional cooling)
- Conversion Efficiency: Up to 88%
- Display Resolution: 0.01V / 0.001A
- Voltage Accuracy: ±0.5% + 0.01V
- Current Accuracy: ±0.5% + 0.003A
- Soft Start: Yes
- Input Reverse Polarity Protection: Yes
- Output Anti-Backflow Protection: Yes
- Over-Voltage Protection: Adjustable
- Over-Current Protection: Adjustable
- Over-Power Protection: Adjustable
- Over-Temperature Protection: 95°C
- Operating Temperature: -20°C to 85°C
- Dimensions: 79 × 43 × 39mm
