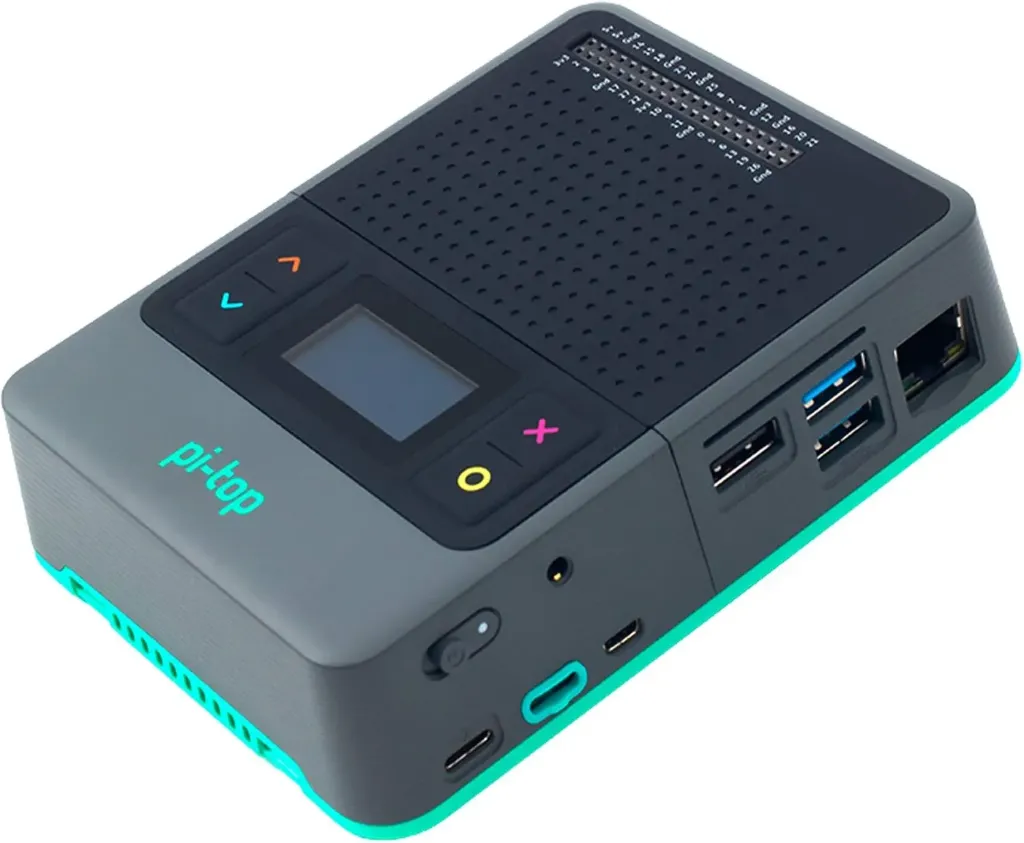

Raspberry Pi TOP 4 DIY Edition

The pi-top [4] DIY Edition is a premium portable enclosure and development platform designed specifically for the Raspberry Pi 4. It combines an integrated rechargeable battery, intelligent power management, active cooling system, OLED status display, programmable buttons, speaker, and expansion interfaces into a durable enclosure that transforms a standard Raspberry Pi 4 into a portable development workstation. Designed for education, robotics, AI, IoT, embedded Linux, and mobile computing applications, the pi-top [4] provides reliable battery-powered operation while maintaining easy access to all Raspberry Pi interfaces. The integrated power management system, cooling solution, and expansion capabilities make it an excellent platform for both professional development and STEM education.

Package Includes

  • 1 × pi-top [4] DIY Edition Enclosure
  • Integrated Rechargeable Battery
  • Integrated Cooling System
  • Built-in OLED Status Display
  • Built-in Speaker

Note: Raspberry Pi 4 board, microSD card, USB-C power adapter, display, keyboard, and mouse are not included.

680.00 AED 680.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Designed specifically for Raspberry Pi 4.
  • Integrated 19.24Wh rechargeable lithium-polymer battery.
  • Up to 5 hours of portable battery operation.
  • USB-C Power Delivery charging.
  • Intelligent battery and power management system.
  • Built-in active cooling fan with aluminum heatsink.
  • Integrated OLED display for battery and system status.
  • Four programmable user buttons.
  • Built-in 1W speaker.
  • Full access to Raspberry Pi GPIO, CSI, USB, Ethernet, HDMI, and microSD card.
  • Compatible with pi-top Maker Architecture accessories.
  • Portable and rugged design for education and field applications.

Principle of Operation

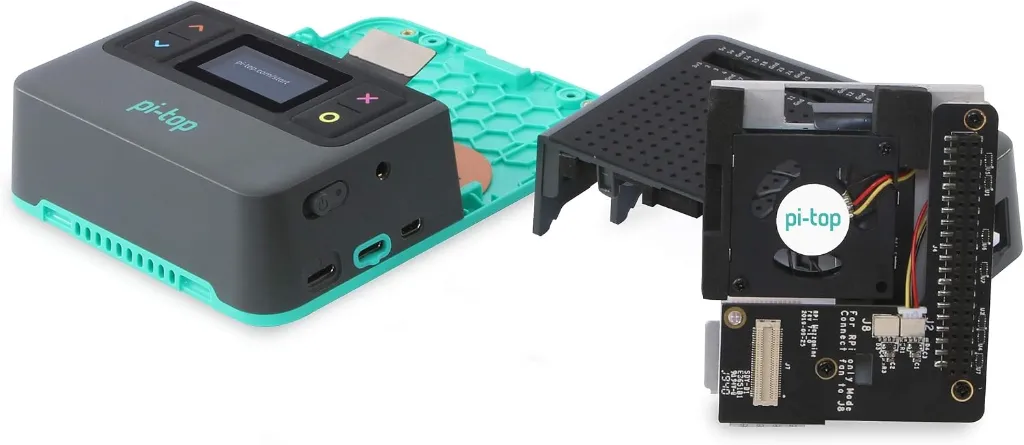

The Raspberry Pi 4 is installed inside the pi-top enclosure where it connects directly to the integrated intelligent power management board. The internal rechargeable battery supplies regulated power to both the enclosure and the Raspberry Pi, allowing completely portable operation without requiring an external power source.

An onboard controller continuously manages battery charging, USB-C power delivery, system protection, OLED status display, cooling fan operation, and programmable user buttons. The active cooling system prevents CPU thermal throttling during heavy workloads, while all Raspberry Pi interfaces remain fully accessible for peripherals and expansion modules.

Applications

  • Portable Raspberry Pi computers
  • Robotics and autonomous systems
  • Artificial intelligence and machine learning
  • IoT gateway development
  • Industrial monitoring
  • STEM education
  • Computer vision projects
  • Embedded Linux development
  • Mobile laboratories
  • Field data acquisition

Interfaces

PT4SPECS

Interface Function
USB-C PD Battery charging and external power input
Micro HDMI Video output
USB 3.0 / USB 2.0 Peripheral connectivity
GPIO Header Hardware expansion
CSI Camera Connector Raspberry Pi camera connection
OLED Display Battery and system status
Programmable Buttons User input and shortcuts
Speaker Audio output
Maker Connector Expansion accessories
MicroSD Access Operating system storage

First Time Setup

  1. Install the Raspberry Pi 4 inside the pi-top enclosure.
  2. Insert a microSD card with Raspberry Pi OS or pi-topOS installed.
  3. Connect a USB-C Power Delivery charger.
  4. Allow the internal battery to charge fully.
  5. Connect an HDMI monitor, keyboard, and mouse.
  6. Power on the pi-top using the power button.
  7. Complete the Raspberry Pi operating system setup.
  8. Install pi-top software utilities if required.

Specifications

Parameter Value
Product Type Portable Raspberry Pi Enclosure
Compatible Board Raspberry Pi 4 Model B
Battery Integrated 19.24Wh Lithium-Polymer
Battery Runtime Up to 5 Hours
Charging Interface USB Type-C Power Delivery
Cooling Active Cooling Fan with Aluminum Heatsink
Status Display Integrated OLED Display
User Buttons 4 Programmable Buttons
Audio Integrated 1W Speaker
Expansion Maker Architecture Compatible
Operating System Raspberry Pi OS, pi-topOS, Ubuntu, Linux Distributions
