The spacing between the clips (lead pitch) is typically 0.1" (2.54 mm). Integrated circuits (ICs) in dual in-line packages (DIPs) can be inserted to straddle the centerline of the block. Interconnecting wires and the leads of discrete components (such as capacitors, resistors, and inductors) can be inserted into the remaining free holes to complete the circuit.
Where ICs are not used, discrete components and connecting wires may use any of the holes. Typically the spring clips are rated for 1 ampere at 5 volts and 0.333 amperes at 15 volts (5 watts).

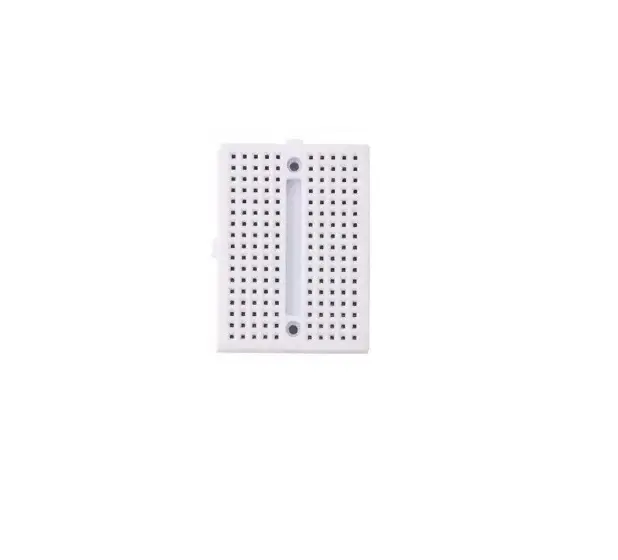

These mini Breadboards make it easy to try out things hooked up to an Arduino mainboard by using wire jumpers. The boards have a self-adhesive backing and 2 x 17 rows of interconnected pins (5 per row) – 170 pins in total. The dimension of this mini Breadboard is 45 x 35 x 9 mm.
Specifications:
| Total pins |
2 x 17 rows of interconnected pins (5 per row) — 170 pins in total |
| Size |
45 x 35 x 9 mm |
| Backing |
Self-adhesive Backing |
| Current capacity per pin |
1 ampere at 5 volts and 0.333 amperes at 15 volts (5 watts) |
| Lead pitch |
0.1 inch (2.54 mm) |
Available Color Variants:
- White
- Blue
- Green
- Red
- Orange
- Transparent
- Black
