GPS Module NEO-6M-0-001 Red With APM2.5 Antenna

The NEO-6M-0-001 GPS Module is a high-precision GPS receiver designed for use with APM2, APM2.5, and other microcontroller projects. It features TTL RS232 communication, onboard EEPROM to save configuration data, and a ceramic patch antenna for stable satellite reception. The module is powered by 3–5V and supports a rechargeable battery backup (MS621FE, not included) to retain satellite data during power-off, improving cold start performance. It is compatible with NMEA0183 protocol and can be configured using the u-Blox u-center software.

Package Includes

  • 1 x GPS Module NEO-6M-0-001 GPS Red
  • 1 x APM2.5 Antenna

36.75 AED 36.75 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • Compatibility: Works with APM2 and APM2.5 flight controllers
  • EEPROM: Saves setup and configuration data for quick initialization
  • Interface: TTL RS232 serial communication
  • Operating Voltage: 3–5V DC
  • Default Baud Rate: 9600 bps
  • Battery: Supports MS621FE backup battery (requires soldering; not included)
  • Test Application: u-Blox u-center (version 6.31 or later)

Specifications

  • Power Supply: 3V–5V
  • Model: GPS-NEO-6M-001
  • Antenna: Ceramic patch antenna
  • Battery: Rechargeable backup battery support
  • Signal Indicator: LED
  • Antenna Size: 25 × 25 mm
  • Module Size: 25.5 × 31.5 mm
  • Mounting Hole: 2 mm
  • Default Baud Rate: 9600 bps
  • Output Protocol: NMEA0183

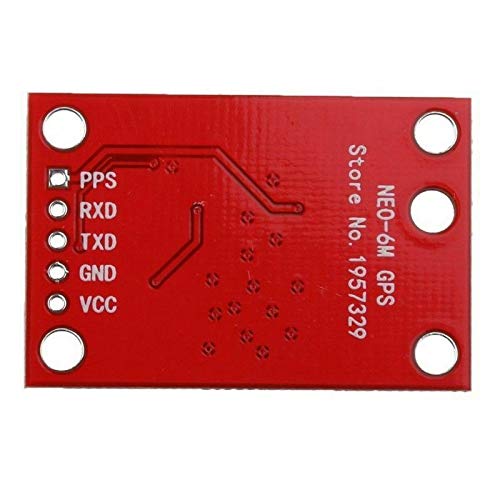

Pinout of the Module

ELECTROPRIME Gy-Neo6Mv2 Neo-6M Gps Module Board with Antenna for Arduino Raspberry Pi I2B3 : Amazon.in: Computers & Accessories

Pin Description
VCC Power supply (3.3V)
GND Ground
TXD Serial Transmit, connect to RX on MCU
RXD Serial Receive, connect to TX on MCU

Applications

  • Autonomous drones and UAVs (APM compatible)
  • Robotics navigation and localization
  • Vehicle tracking and fleet management
  • GPS-based telemetry and data logging
  • Educational and experimental GPS projects
