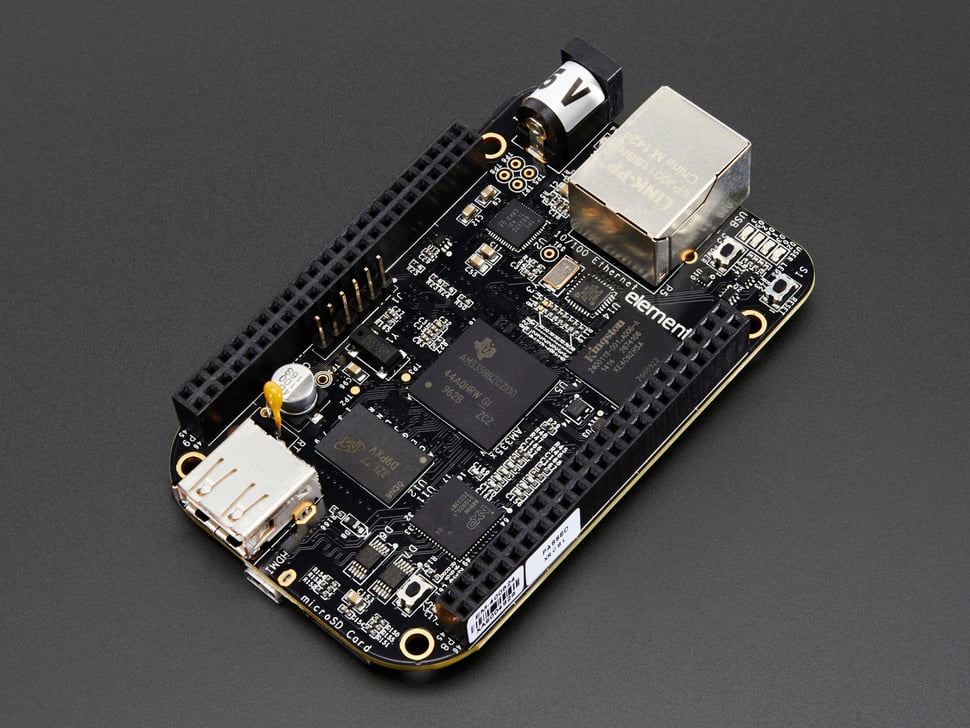

BeagleBone Black Rev C - 4GB Pre instalLED OS Debian Element 14 Version

The BeagleBone Black is a powerful and compact single-board computer designed for embedded systems and development applications. Powered by the Texas Instruments Sitara AM3358 ARM Cortex-A8 processor, it delivers high performance while maintaining low power consumption. Whether used as a standalone Linux computer or integrated into a larger electronics project, the BeagleBone Black provides developers with a flexible and feature-rich platform for rapid prototyping and deployment.

Package Includes:

  • 1 x BeagleBone Black Rev C
  • 1 x Mini USB Cable
313.95 AED 313.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • 1GHz ARM Cortex-A8 processor for high-performance embedded computing
  • 512MB DDR3 RAM for smooth multitasking
  • 4GB onboard eMMC flash storage with preloaded Debian Linux
  • Dual 46-pin expansion headers for extensive I/O access
  • Micro HDMI output for video and audio
  • USB client and host support
  • 10/100 Ethernet connectivity
  • Supports multiple operating systems including Debian, Ubuntu, and Android
  • Compatible with BeagleBone “Cape” expansion boards
  • Compact design suitable for embedded applications



Principle of Work:

The BeagleBone Black operates as a fully functional embedded Linux system. Once powered, it boots from the onboard eMMC storage into the preinstalled Debian operating system. Users can interact with the system via USB, Ethernet, or HDMI interfaces.

The onboard processor executes programs and manages peripherals, while the expansion headers provide direct access to GPIOs, communication protocols (SPI, I2C, UART), and other hardware interfaces. This allows the board to control external devices, read sensors, and interact with other systems in real-time.

Pinout:

BeagleBone Black - BeagleBoard | Mouser

  • Two 46-pin headers (P8 and P9) providing GPIO, SPI, I2C, UART, PWM, ADC, and power pins
  • Dedicated pins for power, ground, and analog input

Applications:

  1. Embedded system development
  2. IoT and edge computing projects
  3. Robotics and automation systems
  4. Industrial control applications
  5. Home automation and smart devices
  6. Educational and prototyping platforms

Circuit / Connectivity:

  • USB Client: Power and communication via Mini USB
  • USB Host: Connect peripherals such as keyboards and flash drives
  • Ethernet: 10/100 RJ45 connection
  • HDMI: Video and audio output
  • Expansion Headers: Interface with sensors, actuators, and external modules

Library / Software:

Getting Started:

  1. Connect the board to your PC using the included Mini USB cable
  2. Power the board via USB or 5V DC supply
  3. Access the board via a web browser or SSH
  4. Optionally insert a microSD card for custom OS installation
  5. Hold the BOOT button during power-up to boot from microSD

Technical Details:

  • Processor: Sitara AM3358BZCZ100, ARM Cortex-A8 @ 1GHz
  • Graphics: SGX530 3D Graphics Engine
  • RAM: 512MB DDR3L @ 800MHz
  • Onboard Storage: 4GB eMMC
  • PMIC: TPS65217C
  • Debug: Optional 20-pin CTI JTAG, Serial Header
  • USB Client: Mini USB (USB 2.0)
  • USB Host: Type-A (USB 2.0)
  • Ethernet: 10/100 RJ45
  • Video Output: Micro HDMI (up to 1920×1080 @ 24Hz)
  • Audio: HDMI Stereo Output
  • SD/MMC: microSD slot (3.3V)
  • GPIO: Up to 69 pins
  • Interfaces: SPI, I2C, UART, CAN, PWM, ADC
  • Board Size: 86.4 × 53.3 mm (3.4" × 2.1")
  • Weight: 39.68g
  • Power Input: 5V via Mini USB or DC jack
