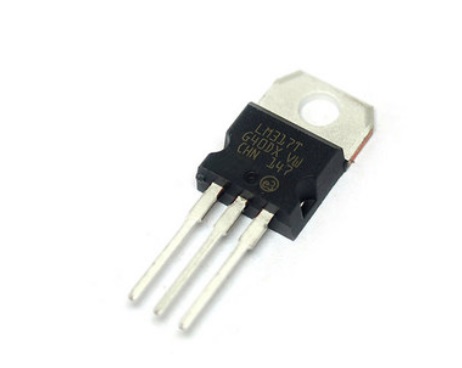

DC-DC Voltage Regulator Adjustable Voltage Regulator LM317

DC-DC Voltage Regulator Adjustable Voltage Regulator LM317

The LM317 is a versatile adjustable three-terminal positive voltage regulator capable of supplying over 1.5 A with an output voltage range from 1.25 V up to 37 V. It requires only two external resistors to set the desired output voltage. This device provides excellent line regulation (typical 0.01%) and load regulation (typical 0.1%). Additional features include internal current limiting, thermal overload protection, and safe operating area protection. Importantly, overload protection remains effective even if the ADJUST terminal is disconnected.
Linear Regulator
5.25 AED 5.25 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Output voltage adjustable from 1.25 V to 37 V
  • Output current greater than 1.5 A
  • Internal short-circuit current limiting
  • Thermal overload protection
  • Output safe-area compensation

LM317 Module Schematic

Applications:

  • ATCA Solutions
  • DLP: 3D Biometrics, Hyperspectral Imaging, Optical Networking, and Spectroscopy
  • DVR and DVS
  • Desktop PC
  • Digital Signage and Still Camera
  • ECG Electrocardiogram
  • EV HEV chargers (Level 1, 2, and 3)
  • Electronic Shelf Label
  • Energy Harvesting
  • Ethernet Switch
  • Femto Base Station
  • Fingerprint and Iris Biometrics
  • HVAC (Heating, Ventilating, and Air Conditioning)
  • High-Speed Data Acquisition and Generation
  • Hydraulic Valve
  • IP Phone (Wired and Wireless)
  • Intelligent Occupancy Sensing
  • Motor Control (Brushed DC, Brushless DC, Low-Voltage, Permanent Magnet, and Stepper Motors)
  • Point-to-Point Microwave Backhaul
  • Power Bank Solutions
  • Power Line Communication Modem
  • Power Over Ethernet (PoE)
  • Power Quality Meter
  • Power Substation Control
  • Private Branch Exchange (PBX)
  • Programmable Logic Controller
  • RFID Reader
  • Refrigerator
  • Signal or Waveform Generator
  • Software Defined Radio (SDR)
  • Washing Machines (High-End and Low-End)
  • X-ray (Baggage Scanner, Medical, and Dental)
