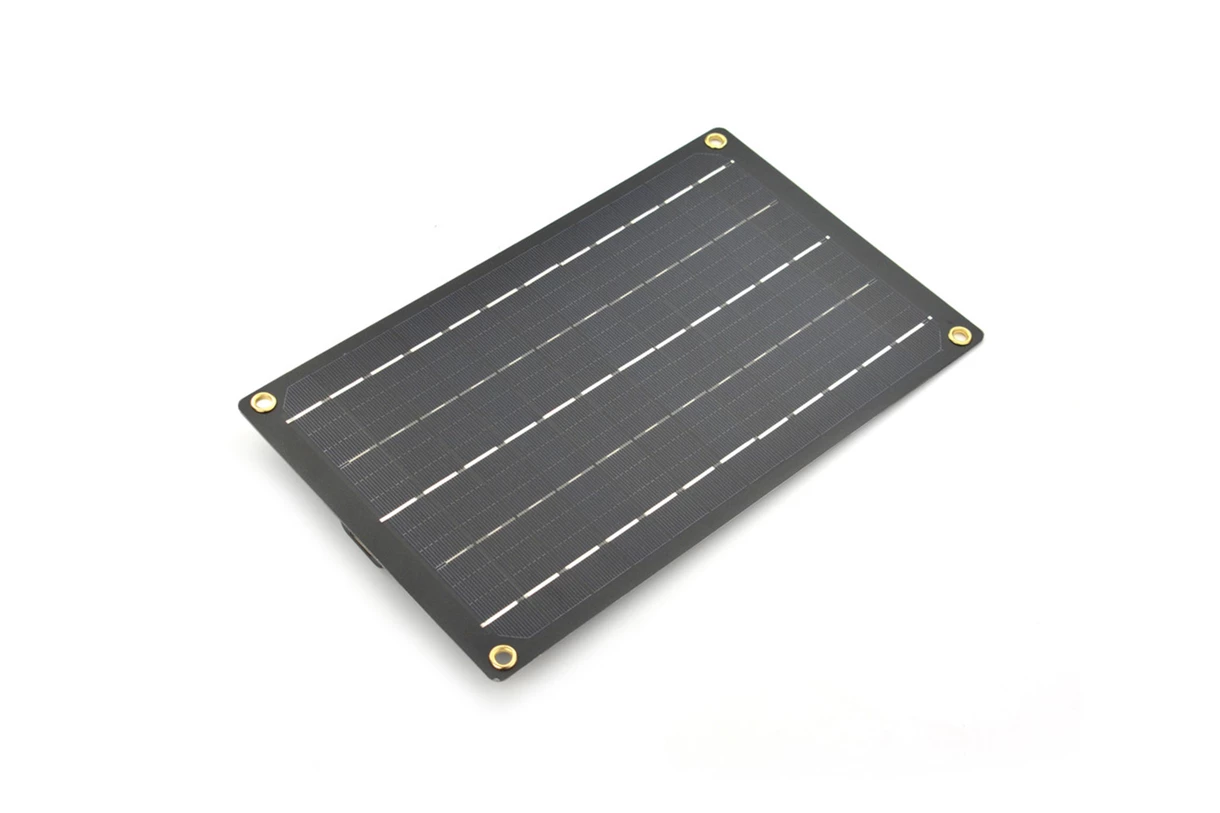

The panel is housed in a lightweight PET laminated structure which improves durability while keeping the weight low for portable use. It also includes working indicator lights to show the operational status. The design supports outdoor usage and can operate even in less ideal weather conditions such as cloudy or rainy days.
When paired with compatible solar power management boards, the panel can provide efficient power conversion and battery charging, making it ideal for IoT systems, embedded electronics, DIY renewable energy systems, outdoor devices, and educational projects.
Features
- High efficiency monocrystalline silicon solar cells
- Conversion efficiency up to approximately 21 percent
- Integrated voltage regulator with stable 5V output
- USB Type A female port for easy plug and play connection
- Working indicator LEDs for operational status
- Water resistant design suitable for outdoor environments
- Lightweight PET laminated structure for portability
- Mounting holes and copper clasps for easy installation
- Compatible with solar power management boards
- Suitable for DIY electronics, IoT systems, and portable power projects
Specifications
- Solar Cell Type: Monocrystalline Silicon
- Maximum Power: 6W
- Output Voltage: 5V regulated
- Maximum Power Voltage: 6V
- Maximum Power Current: 1A
- Open Circuit Voltage: 7.2V
- Short Circuit Current: 1.1A
- Module Size: 275 x 170 mm
- Maximum System Voltage: 600V
- Cell Efficiency: About 20 percent
- Output Tolerance: +/- 5 percent
- Temperature Range: -40 C to +85 C
- Temperature Coefficient of Isc: 0.065 +/- 0.015 percent per C
- Temperature Coefficient of Voc: -2.23 +/- 0.1 mV per C
- Temperature Coefficient of Pm: -0.5 +/- 0.05 percent per C
- Temperature Coefficient of Im: +0.1 percent per C
- Temperature Coefficient of Vm: -0.38 percent per C
- Surface Maximum Load Capacity: 15 m/s wind or 100 kg per square meter
- Allowable Hail Load: Steel ball falling from 1 m height
- Frame Material: Anodized Aluminum Alloy
- Angle of Greatest Flexion: 30 degrees
- Cable Length: Approximately 1 m
- Weight: Approx. 300 g
- Standard Test Conditions: AM1.5 100 mW per cm2 25 C
