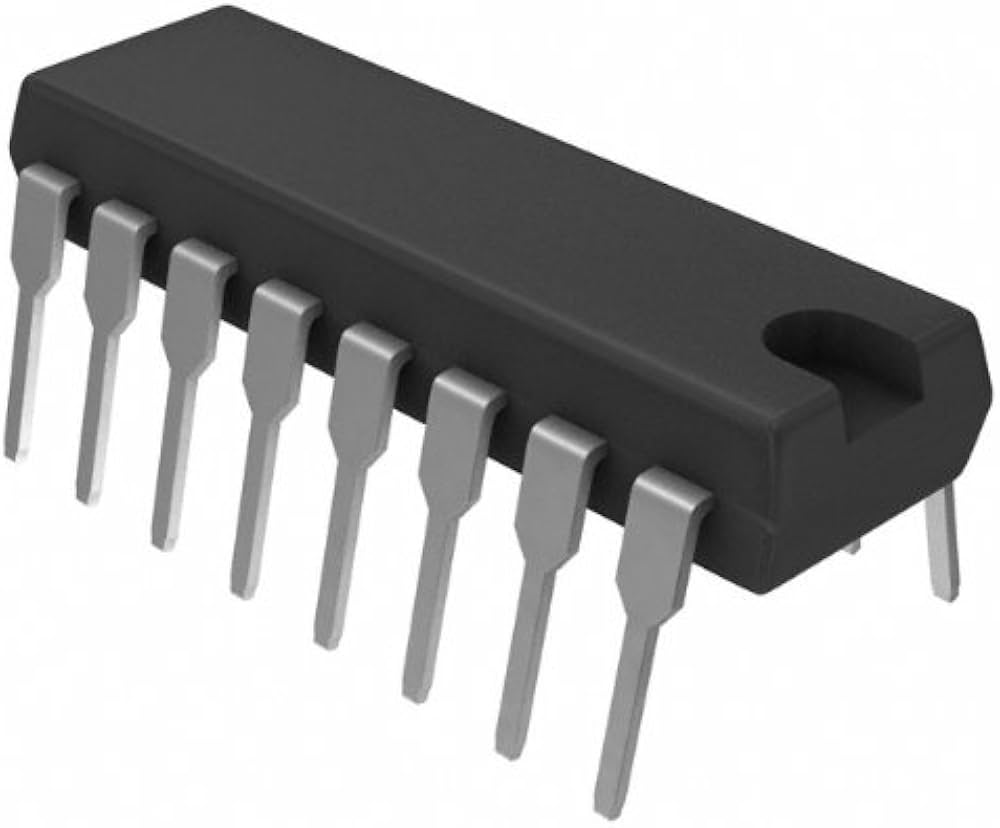

IC Logic Gate 74LS283N Adder

The 74LS283 is a high-speed 4-bit full adder IC designed to perform the addition of two 4-bit binary numbers. It provides sum (R) outputs for each bit and a resultant carry output (C4) from the fourth bit. This IC features full internal carry look-ahead across all four bits, giving system designers partial look-ahead performance while maintaining the simplicity and reduced package count of a ripple-carry implementation. The adder logic, including the carry, is implemented in its true form, enabling end-around carry without additional logic or inversion.
