LED Line RGB 8 LED WS2812 Driver Module Board

The 8-Bit WS2812 5050 RGB LED Module is a compact lighting module featuring 8 individually addressable RGB LEDs. Each 5050 LED integrates a WS2812 driver IC, allowing precise color and brightness control using a single-wire digital interface. Designed for real-time control, this module is fully compatible with Arduino and other supported microcontroller platforms, making it ideal for dynamic lighting effects, indicators, and embedded projects.

Package Includes

  • 1 × WS2812 RGB LED Module (8 LEDs)
LED RGB WS2812
15.75 AED 15.75 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • 8 individually addressable RGB LEDs.
  • Integrated WS2812 driver IC inside each 5050 LED.
  • Single-wire digital communication interface.
  • Uniform brightness and consistent color output.
  • Supports cascading additional WS2812 modules.
  • Data transfer speeds up to 800Kbps.
  • Compatible with common NeoPixel libraries.

Specifications

  • Operating Voltage: 5V DC
  • LED Type: 5050 RGB with integrated WS2812 IC
  • Number of LEDs: 8
  • Brightness Resolution: 256 levels per color
  • Color Depth: 24-bit (16,777,216 colors)
  • Communication Interface: Single-wire digital
  • Data Rate: Up to 800Kbps

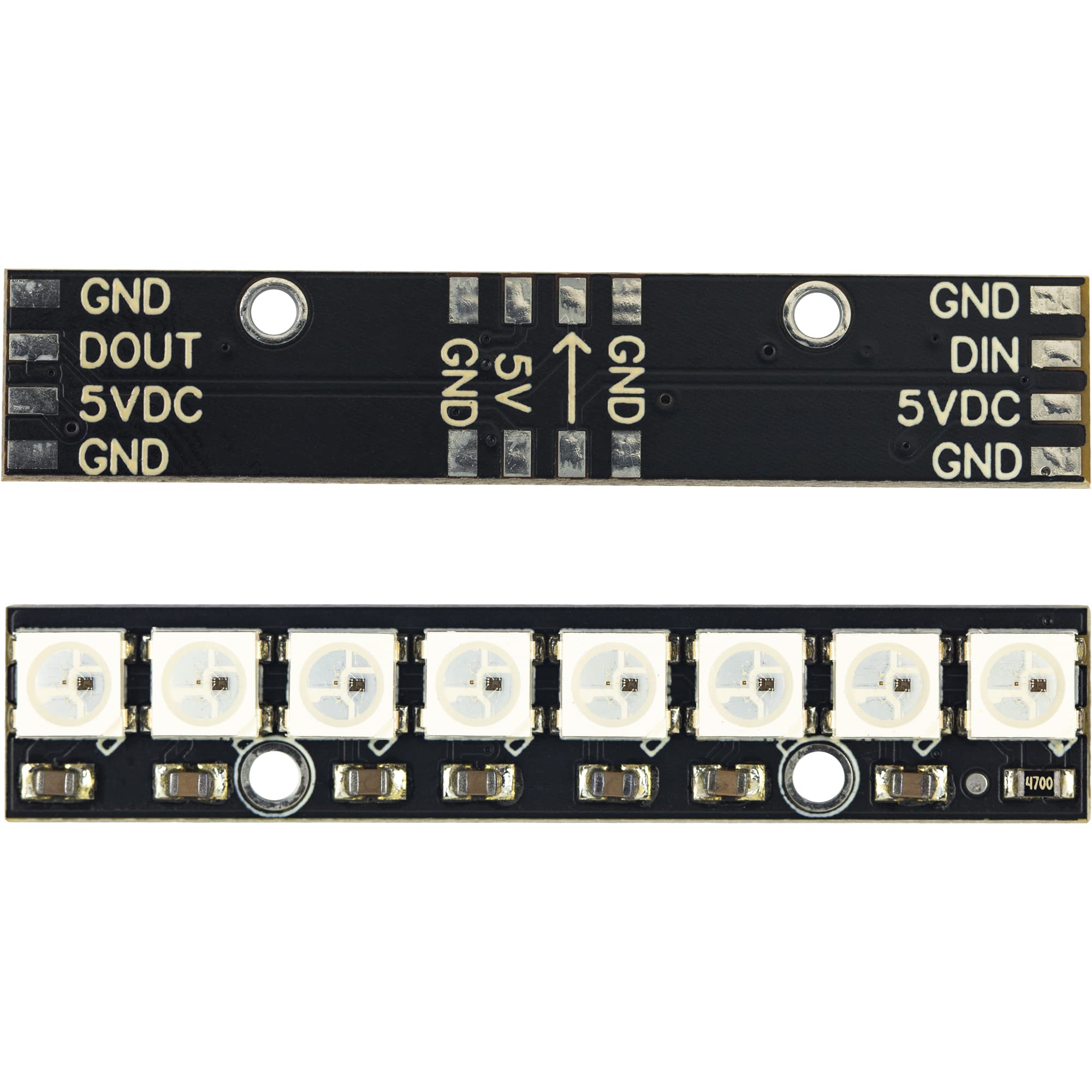

Pinout:

naughtystarts WS2812 5050 LED Stick Light 8 Bit Channel RGB LEDs Full Color with Integrated Drivers Board for Arduino Raspberry Pi Development (Pack of 5pcs): Buy Online at Best Price in UAE -

Arduino Wiring

Sparkleiot LED Stick Ring WS2812 RGB 8 x 5050 WS2812B 8 Bits with Onboard Drivers for Arduino Raspberry Pi Mirco:bit ESP32 (Pack of 10) : Amazon.co.uk: Business, Industry & Science

  • VCC → 5V on Arduino
  • GND → GND on Arduino
  • DIN → Digital Pin (example: D6)
  • DOUT → Optional cascading output

Arduino Example Code

Installation of Library

To install the Adafruit_NeoPixel library:

  1. Open Arduino IDE → Sketch → Include Library → Manage Libraries.
  2. Search for Adafruit NeoPixel.
  3. Click Install.
  4. Alternatively, download ZIP from GitHub and install via Sketch → Include Library → Add .ZIP Library.
#include <Adafruit_NeoPixel.h>

#ifdef __AVR__
  #include <avr/power.h>
#endif

#define LED_PIN     6
#define NUMPIXELS   8
#define DELAYVAL    500

Adafruit_NeoPixel pixels(NUMPIXELS, LED_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  #if defined(__AVR_ATtiny85__) && (F_CPU == 16000000)
    clock_prescale_set(clock_div_1);
  #endif

  pixels.begin();
}

void loop() {
  pixels.clear();

  for(int i = 0; i < NUMPIXELS; i++) {
    pixels.setPixelColor(i, pixels.Color(0, 0, 255)); // Blue
    pixels.show();
    delay(DELAYVAL);
    pixels.setPixelColor(i, 0);
  }
}

Applications

  • Decorative and ambient lighting.
  • LED animations and visual effects.
  • Status indicators and dashboards.
  • Wearable electronics.
  • DIY and embedded projects.
