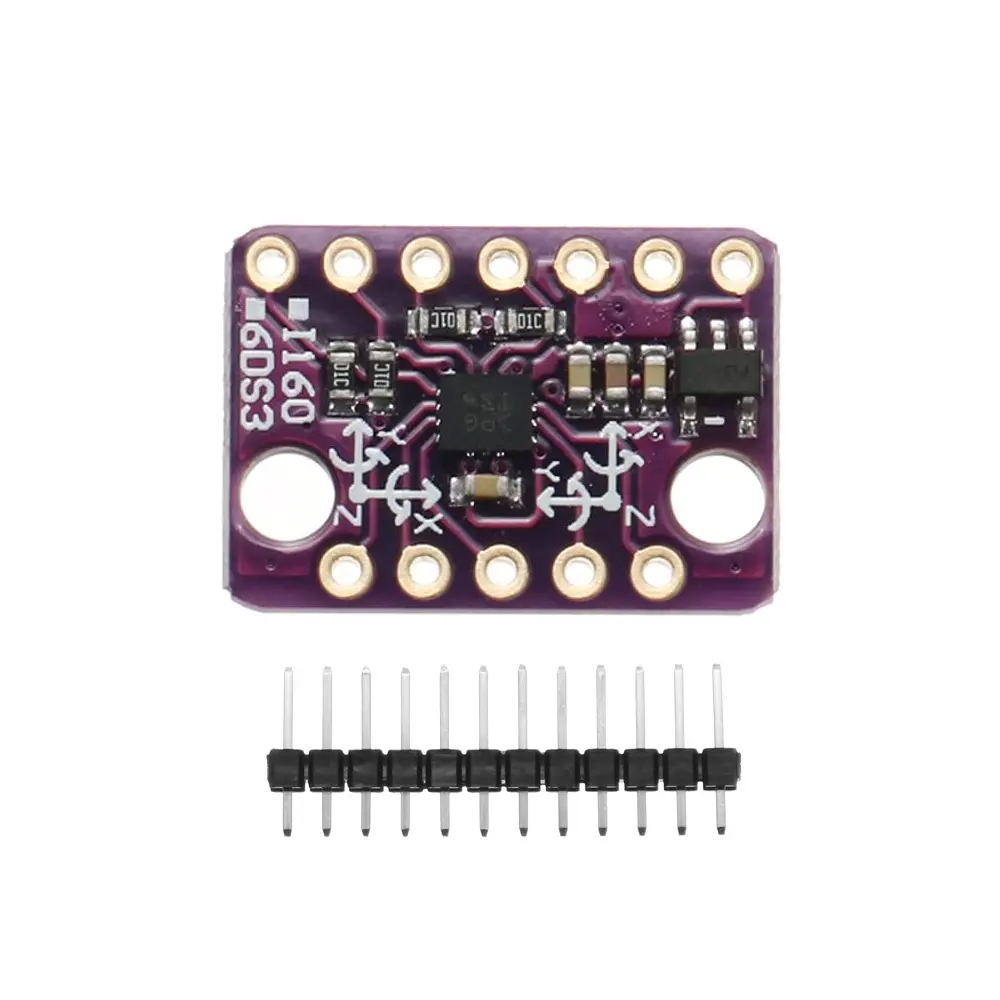

Accelerometer Sensor 3-5V GY-BMI160 6DOF 6-Axis Gyro Gravity

Accelerometer Sensor 3-5V GY-BMI160 6DOF 6-Axis Gyro Gravity

The BMI160 module from Bosch Sensortec is a highly integrated 6-axis MEMS inertial sensor that combines a 3-axis 16-bit accelerometer and an ultra-low-power 3-axis gyroscope into a single compact package. Designed for low-power motion-sensing applications, this module is ideal for smartphones, tablets, wearables, and fitness devices. It supports high-precision motion tracking, step counting, tilt detection, and gesture recognition, with extremely low power consumption—even in full-speed operation.

Package Includes:

  • 1 x BMI160 6-Axis IMU Sensor Module

28.35 AED 28.35 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Integrated Sensor: 3-axis accelerometer + 3-axis gyroscope in a single chip
  • Low Power Consumption:
  • Built-in Step Counter: Smart algorithm for step detection via register access
  • Multiple Measurement Ranges:
    • Accelerometer: ±2g, ±4g, ±8g, ±16g
    • Gyroscope: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
  • Programmable Output Rate: 25/32Hz to 1600Hz
  • Data Output: 16-bit resolution
  • FIFO Buffer: Built-in 1024-byte FIFO for efficient data access
  • Interrupts: 2 programmable interrupt generators
  • Voltage Compatibility: Works with 3.3V and 5V logic levels
  • Interface: I2C or SPI (2.54mm header)
  • Smart Power Management: Built-in LDO regulator supports VIN 3.2V–6V

Specifications:

Parameter Value
Supply Voltage 3.2V to 6V (VIN), 3.3V logic level supported
Current Consumption <1 mA typical
Accelerometer Range ±2g, ±4g, ±8g, ±16g
Gyroscope Range ±125°/s to ±2000°/s
Zero Drift (Accel) ±40 mg
Zero Drift (Gyro) ±10°/s
Data Resolution 16-bit output
Sampling Frequency 25/32Hz to 1600Hz (programmable)
Interface I2C/SPI, 2.54 mm pitch
Shock Resistance 10,000 g for 200 μs
FIFO Buffer 1024 bytes
Operating Temperature -40°C to +85°C

Pinout:

Pin Description
VIN Main power supply input (3.2V–6V)
3.3V Optional regulated 3.3V input
GND Ground
SCL I2C/SPI clock
SDA I2C data or SPI MOSI
SDO SPI MISO or I2C address select
CS Chip select for SPI
INT1 Interrupt pin 1
INT2 Interrupt pin 2

Applications:

  • Step counting and pedometers
  • Fitness tracking and wearables
  • Motion and tilt detection
  • Screen orientation control
  • Gaming and gesture control
  • Portable and mobile electronics

Typical Arduino Connection (I2C):

  • VIN → 5V
  • GND → GND
  • SDA → A4
  • SCL → A5

Library Support:

The BMI160 module is supported by libraries such as Adafruit_BMI160 and Seeed_BMI160. These can be installed via the Arduino Library Manager.

Sample Arduino Code (I2C):


#include <Wire.h>
#include <Seeed_BMI160.h>

BMI160 bmi160;

void setup() {
  Serial.begin(115200);
  if (bmi160.initialize() != BMI160_OK) {
    Serial.println("BMI160 init failed!");
    while (1);
  }
  Serial.println("BMI160 initialized");
}

void loop() {
  bmi160.getMotion6();
  Serial.print("Accel: ");
  Serial.print(bmi160.ax); Serial.print(" ");
  Serial.print(bmi160.ay); Serial.print(" ");
  Serial.print(bmi160.az); Serial.print(" | Gyro: ");
  Serial.print(bmi160.gx); Serial.print(" ");
  Serial.print(bmi160.gy); Serial.print(" ");
  Serial.println(bmi160.gz);
  delay(500);
}
