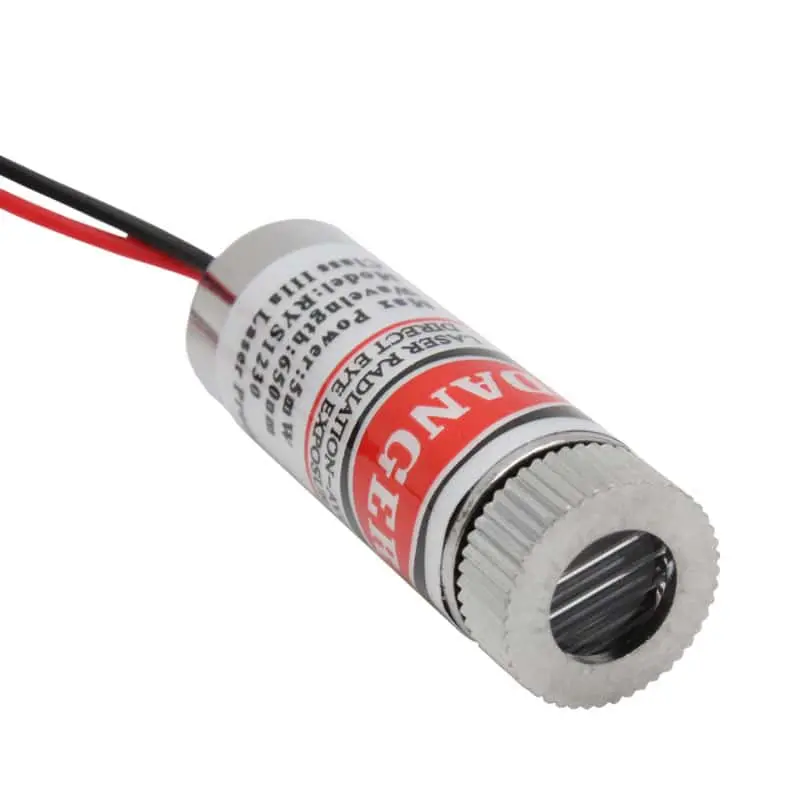

Laser Module 5mW 650nm Red (Line)

Laser Module 5mW 650nm Red (Line)

The Encapsulated Laser Diode is a Class III laser module that emits a 650nm red laser line with an output power of 5mW. It features an adjustable focus and operates on a wide voltage range of 3.0V to 5.0V DC, making it highly suitable for embedded electronics, robotics, CNC machines, and alignment applications. This is not a laser pointer, but a laser diode with a built-in driver circuit.

Package Includes:

  • 1 x 650nm 5mW Encapsulated Red Line Laser Diode Module

Laser Module
15.75 AED 15.75 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications:

  • Output Laser Shape: Red Straight Line
  • Focus: Adjustable at the laser head
  • Output Power: 5mW (Class III)
  • Wavelength: 650nm (Red)
  • Operating Voltage: 3.0V to 5.0V DC
  • Working Temperature: -10°C to 40°C
  • Module Dimensions: 12mm x 40mm
  • Cable Length: 135mm

Features:

  • Integrated driver circuit for plug-and-play operation
  • Wide operating voltage range supports versatile power sources
  • Adjustable focus for precision alignment and control
  • Compact and lightweight aluminum housing

Applications:

  • CNC or Laser Engraver Position Identification
  • Laser Test Tools
  • Concentricity and Object Positioning
  • Medical Equipment Aiming
  • Signal Equipment Prototyping
  • DIY and Hobby Projects
  • Robotics and Alignment Systems

Additional Notes:

  • Always observe safety precautions when operating laser devices.
  • Keep the lens clean for optimal laser clarity and performance.
