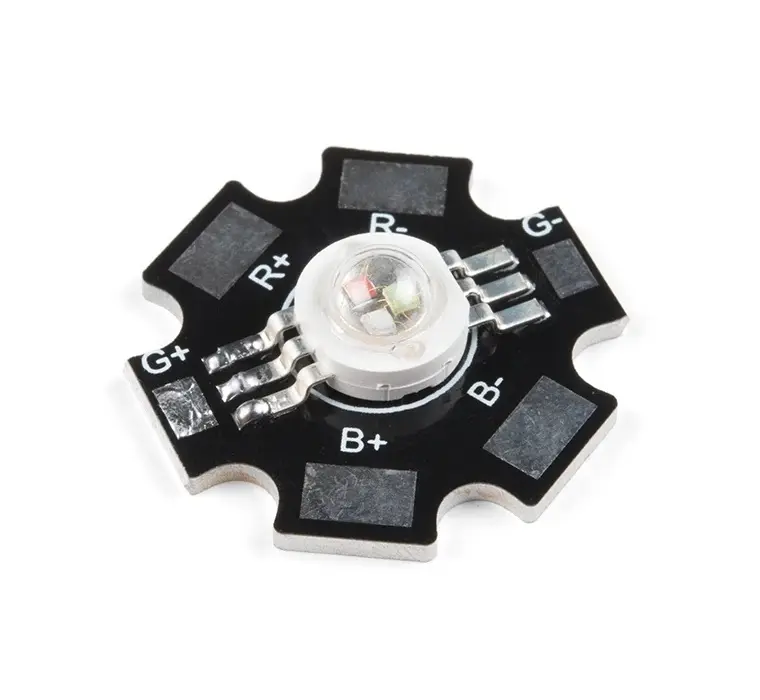

LED 3W High Power Component RGB

LED 3W High Power Component RGB

This high-performance RGB LED features a compact design ideal for tight spaces and circuit board integration. Whether you're creating ambient lighting, decorative displays, or dynamic signage, this LED offers versatile functionality. Depending on your wiring setup, the LED can either flash automatically in RGB colors or be manually controlled for specific color effects. Let your creativity shine with colorful lighting in the smallest of areas!

Package Includes:

  • 1 x High Power RGB LED 3W

6.30 AED 6.30 AED Tax Included
6.30 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Technical Specifications:

  • Power: 3W
  • Luminous Intensity: Red: 35 lm, Green: 70 lm, Blue: 20 lm
  • Forward Voltage: Red: 2.2V, Green/Blue: 3.4V
  • Forward Current: 350mA
  • Color Temperature: 3000–3100K (general), Red: 620K, Green: 250K, Blue: 460K
  • Power Loss: 3W
  • Reverse Current: 5µA
  • Beam Angle: 140°
  • Operating Temperature: -30°C to +60°C
  • Dimensions: 14.58 x 8 x 5.1 mm

Applications:

  • Colorful lighting displays
  • Advertising tickers with color-changing effects
  • DIY electronics projects
  • RGB signage and indicators
